Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
  • Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
  • Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
  • Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
  • Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
  • Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
  • Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing
Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing

Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing

Place of Origin Shandong, China
Brand Name SANWEI
Product Details
Mixer Type:
Planetary Mixer
Barrel Volume (L):
350
Material Processed:
Chemicals
Max. Loading Volume (L):
200 L
Range Of Spindle Speed(r.p.m):
1 - 500 R.p.m
Max. Loading Capacity:
200L
Weight (KG):
4000 KG
Material:
SUS304, SUS304L, SUS316, SUS316L
Condition:
New
Product Type:
Viscous Liquid
Application:
Viscous Fluid
Additional Capabilities:
Milling
Voltage:
As Customer's Requirement
Dimension(L*W*H):
Depend On The Model
Power (kW):
15 KW
Warranty:
1 Year
Key Selling Points:
Long Service Life
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Product Name:
Planetary Mixer
Function:
Viscous Liquid Mixer
Usage:
Silicon Polyurethane Sealant
Machine Type:
Industrial Vacuum Mixer
Application Scope:
High Viscosity Product
Keyword:
Industrial Mixer With Wall Scraper
Mixing Type:
High Speed And Low Speed
Speed:
0~50, 0~500, 0~1440rpm
Advantage:
Long Service Life
Speed Control:
Inverter Frequency Control
Port:
QINGDAO
High Light:

silicon industrial mixer

,

polyurethane sealant industrial mixer

,

viscous industrial mixer

Payment & Shipping Terms
Price
$5,600.00/sets >=1 sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description

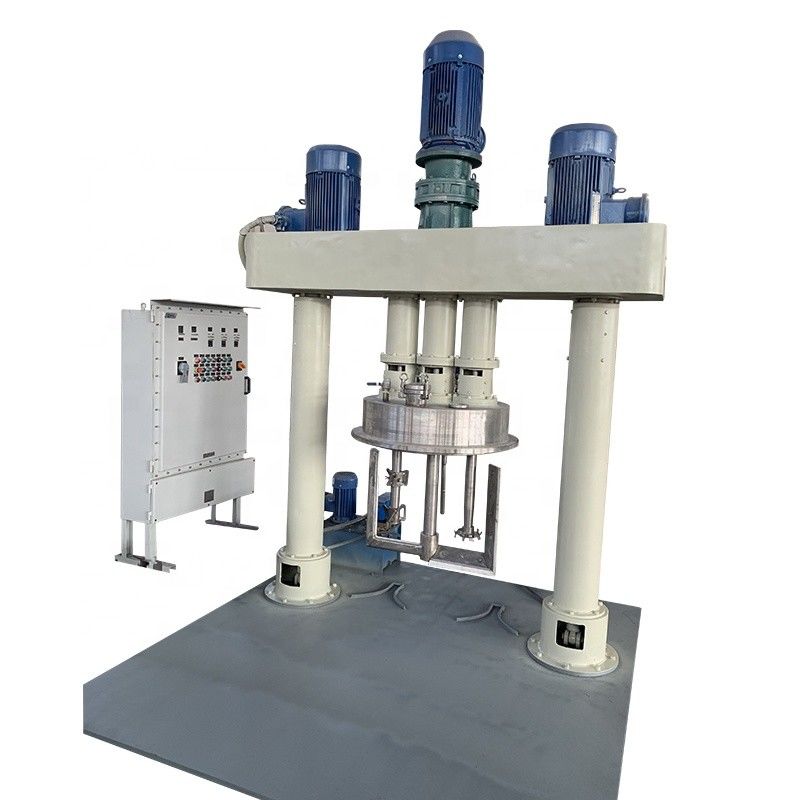

Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing 0
Industrial mixer with wall scraper silicon polyurethane sealant viscous liquid vacuum lift double planetary mixer
This kind of mixers are suitable for dispersing, mixing and stirring of high viscosity material, such as adhesive, silicone sealant, glass glue etc.
Product Description
Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing 1
 Industrial mixer with wall scraper

1. capacity: 200kg/batch
2. the motor power of dispersing agitator: 15KW
3. the motor power of frame agitator: 15KW, The frame agitator with scrape the wall, the material of scrape is PTFE
4. lifting form: hydraulic lift
5. contact material parts: SS304, others: carbon steel painted with antirust paint
6. the volume of tank: 350L
7. material: SS304
We still have more models
We support OEM
Industrial mixer
dispersion agitator
15kw, speed: 0~1440 rpm, with frequency converter
frame agitator
15KW, speed: 0~50 rpm, with frequency converter. The frame agitator with scrape the wall, the material of scrape is PTFE
butterfly paddle
15kw, speed: 0~500 rpm, with frequency converter
lifting form
hydraulic lift
contact material parts
SS304
the volume of tank
350L, material: SS304, thickness: inner cylinder: 10mm, jacket: 6mm
the size of tank
diameter: 800mm, height: 700mm
We support OEM
Detailed Images
Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing 2
Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing 3
Lifting method: hydraulic lift Agitator: frame & dispersion disc & butterfly paddle
Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing 4
Double Planetary Mixer for Silicon Polyurethane Sealant and Viscous Liquid Processing 5
Rotate speed: frequency converter regulation speed The frame agitator with wall scraper
