Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
  • Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
  • Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
  • Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
  • Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
  • Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
  • Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester

Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester

Place of Origin Shandong, China
Brand Name SANWEI
Product Details
Capacity:
200L
Automatic Grade:
Automatic
Type:
Reaction Kettle
Condition:
New
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Motor
Voltage:
Customer Required
Power:
2.2KW
Dimension(L*W*H):
Depend On The Model
Weight:
600
Warranty:
1 Year
Key Selling Points:
Long Service Life
Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
None
Product Name:
Resin Reactors
Material:
Stainless Steel , Carbon Steel
Application:
Alkyd Resin Reactor
Heating Method:
Electric Heating, Steam Heating, Oil Circulation Heating Etc.
Mixing Type:
Anchor, Frame, Paddle
Machine Type:
Atmospheric Pressure Equipment
Usage:
Epoxy Resin Reactor
Keywords:
Resin Reactor
Vacuum Degree:
Max: -0.098 Mpa
Volume:
50~10000L
Port:
QINGDAO
Highlight:

chemical stirring vessel resin reactors

,

200l resin reactors

,

polyester resin reactors

Payment & Shipping Terms
Price
$2,250.00/sets 1-4 sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 0
Product Description



Resin reactor reaktor polymerization reactor vessel chemical stirred tank unsaturated polyester resin reactors

1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, double layer (jacketed type), limpet coil type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.

Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 1
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 2
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 3
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 4
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 5
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 6
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 7
Model
50L
100L
300L
500L
1000L
2000L
3000L
5000L
Mixing Motor Power
0.75KW
1.1KW
2.2KW
2.2KW
4KW
5.5KW
7.5KW
15KW
Heating Motor Power
8KW
12KW
24KW
36KW
48KW
60KW
75KW
90KW
Inner Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Jacket Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Material
SS304, SS316L, Carbon Steel; It also can be lined PTFE.







Heating Type
electric heating, steam heating, oil circulation heating etc.







Agitator
anchor, paddle, frame etc.







Sealing Method
packing seal or mechanical seal (vacuum)







Model
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)







Remarks
We support OEM







More Type
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 8
Electric Heating Reactor
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 9
Steam Heating Reactor
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 10
Limpet Coil Reactor
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 11
Three Agitator Reactor

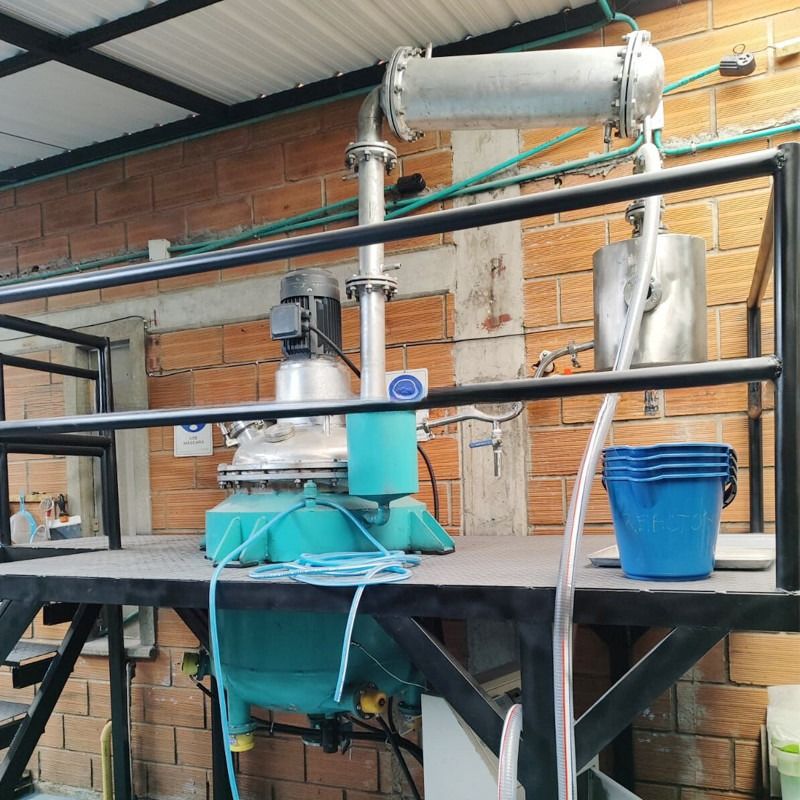

Project Show Case
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 12
Details Images
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 13
Mirror polished curved head
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 14
The upper cover of reactor (customizable)
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 15
Anchor agitator
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 16
Paddle agitator
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 17
Cooling coil-pipe in inner cylinder
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 18
Cooling coil-pipe in inner cylinder
Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester 19
