industrial double shaft mixer with wall scraper Power 7.5 kW
  • industrial double shaft mixer with wall scraper Power 7.5 kW
  • industrial double shaft mixer with wall scraper Power 7.5 kW
  • industrial double shaft mixer with wall scraper Power 7.5 kW
  • industrial double shaft mixer with wall scraper Power 7.5 kW
  • industrial double shaft mixer with wall scraper Power 7.5 kW
  • industrial double shaft mixer with wall scraper Power 7.5 kW
industrial double shaft mixer with wall scraper Power 7.5 kW

industrial double shaft mixer with wall scraper Power 7.5 kW

Place of Origin Shandong, China
Brand Name SANWEI
Certification CE ISO
Product Details
Mixer Type:
Agitator
Barrel Volume (L):
500
Material Processed:
Chemicals
Max. Loading Volume (L):
300 L
Range Of Spindle Speed(r.p.m):
1 - 20 R.p.m
Max. Loading Capacity:
300L
Weight (KG):
1800 KG
Material:
SUS304, SUS304L, SUS316, SUS316L, SS304, SS316
Condition:
New
Product Type:
Paste
Application:
Viscous Fluid
Additional Capabilities:
Milling
Voltage:
Customer Required
Dimension(L*W*H):
According To The Prduct's Model
Power (kW):
7.5 KW
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, Gear, Gearbox, Pump, Bearing, Engine
Product Name:
Double Shaft Mixer With Wall Scraper
Machine Type:
Twin Shaft Mixer
Function:
Putty Mixer
Usage:
Industrial Mixer With Scraper
Application Scope:
Chemical Industry
Mixing Type:
Low Speed & High Speed
Keyword:
Wall Putty Mixer
Speed:
1~49rpm, 1~1440rpm
Advantage:
The Frame Agitator With Scrape The Wall
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Port:
QINGDAO
Highlight:

double shaft mixer with wall scraper

,

industrial double shaft mixer

,

7.5 kw industrial double shaft mixer

Payment & Shipping Terms
Price
$1,150.00 - $5,800.00/sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
industrial double shaft mixer with wall scraper Power 7.5 kW 0

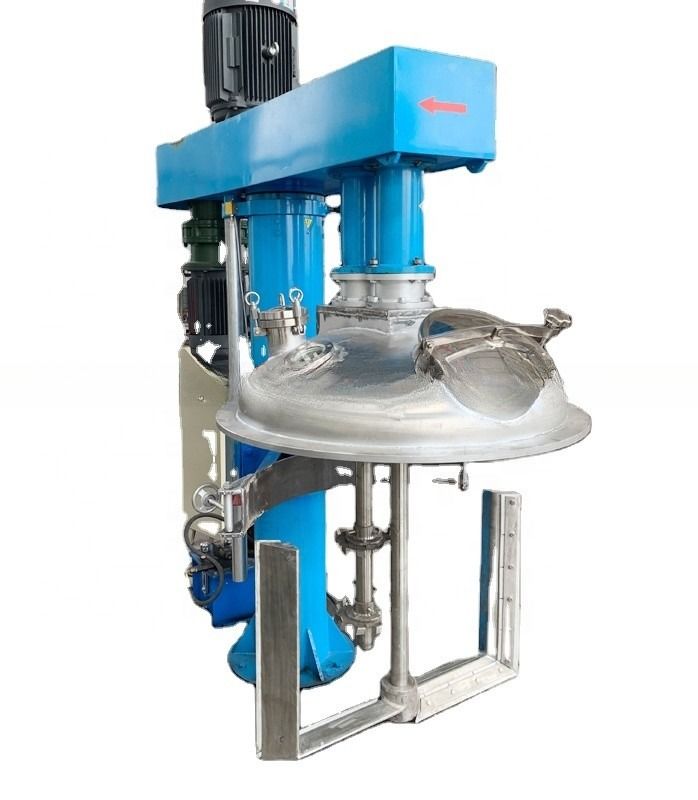

Double twin shaft putty mixing mixer machine high speed dispersing low speed mixer with wall scraper
industrial double shaft mixer with wall scraper Power 7.5 kW 2


Wall Putty Mixer
1. capacity: 300kg/batch
2. the motor power of dispersing agitator: 22KW
3. the motor power of frame agitator: 7.5KW, The frame agitator with scraper, the material of scraper is PTFE
4. lifting form: hydraulic lift
5. contact material parts: SS304, others: carbon steel painted with antirust paint
6. the volume of tank: 500L
7. material: SS304, thickness: 6mm
We still have more models
We support OEM
Vacuum dispersing machine




dispersion agitator
22kw, speed: 0~1440rpm, with frequency converter



frame agitator
7.5KW, speed: 0~49rpm, with frequency converter. The frame agitator with scraper, the material of scraper is PTFE



lifting form
hydraulic lift



contact material parts
SS304



the volume of tank
500L, material: SS304, thickness: 6mm



the size of tank
diameter: 900mm, height: 900mm



We support OEM




Details Images
industrial double shaft mixer with wall scraper Power 7.5 kW 3
Lifting method: hydraulic lift
industrial double shaft mixer with wall scraper Power 7.5 kW 4
Agitator: frame & dispersion disc
industrial double shaft mixer with wall scraper Power 7.5 kW 5
The frame agitator with scraper
industrial double shaft mixer with wall scraper Power 7.5 kW 6
With movable stainless steel tank
