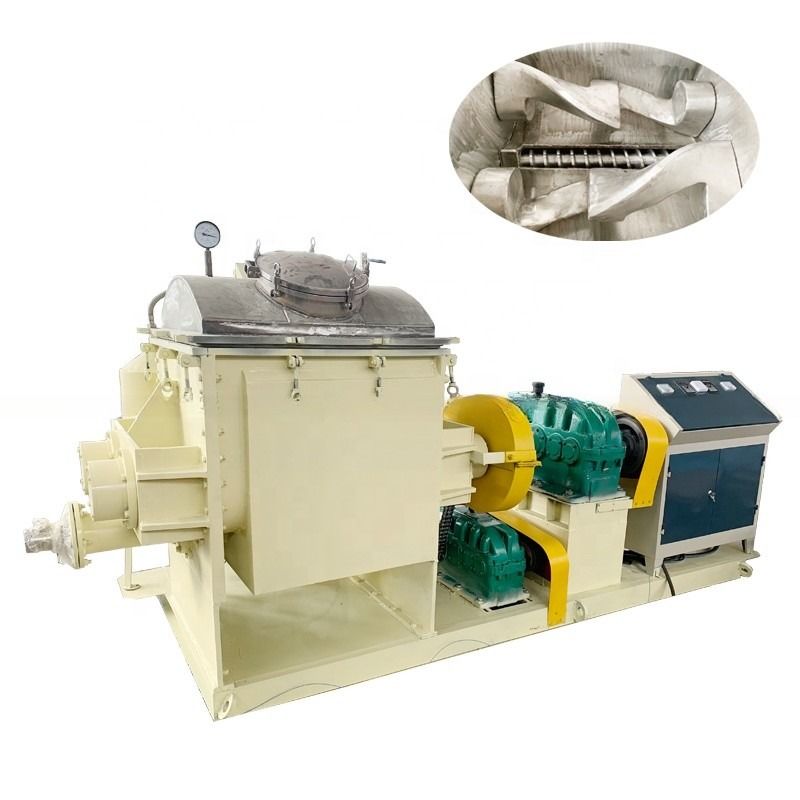

500L Sigma Kneader Mixer playdough kneading machine customized

Name: 500L Sigma Kneader Mixer playdough kneading machine customized
Brand: SANWEI
SKU: SANWEI
Price: 1 USD
Availability: InStock
Rating: 4.6 (104 reviews)

Place of Origin	Shandong, China
Brand Name	SANWEI
Certification	CE ISO

Product Details

Mixer Type:

Sigma / Z Blade

Barrel Volume (L):

500 L

Material Processed:

Chemicals

Max. Loading Volume (L):

300 L

Range Of Spindle Speed(r.p.m):

21 - 37 R.p.m

Max. Loading Capacity:

300kg

Weight (KG):

4000 KG

Material:

SUS304, SUS304L, SUS316, SUS316L, SS304 ; SS316 ; Carbon Steel

Condition:

New

Product Type:

High Viscosity Material

Application:

Viscous Fluid

Additional Capabilities:

Heating

Voltage:

Customer Required

Dimension(L*W*H):

Depend On The Model

Power (kW):

37 KW

Warranty:

1 Year

Key Selling Points:

Long Service Life

Applicable Industries:

Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, OTHER

Showroom Location:

None

Marketing Type:

Ordinary Product

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, Reducer

Product Name:

Sigma Kneader

Machine Type:

Playdough Kneading Machine

Model:

5~2000L

Keyword:

Clay Kneading Mchine

Stirrer Type:

Sigma / Z Arm Blade

Heating Method:

Electric Heating

Type:

Ordinary Type, Vacuum Type

Open The Cover:

Hydraulic Opening

Discharge:

Screw Extuding, Hydraulic Tilt

After-sales Service Provided:

Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service

After Warranty Service:

Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local Service Location:

None

Port:

QINGDAO

High Light:

500l sigma kneader mixer

customized sigma kneader mixer

500l playdough kneading machine

Payment & Shipping Terms

Price

$1,250.00 - $9,800.00/sets

Packaging Details

Suitable Delivery And Protect The Machine

Supply Ability

100 Set/Sets per Quarter

Product Description

Hot Melt Adhesive Play Dough Clay Chewing Gum Kneading Machine Paste Silicone Rubber Sealant Sigma Kneader Mixer

Sigma Kneader is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.

Main Features:
1. Material: SS304 , SS316 or carbon steel can be choose
2. Type: normal type , vacuum type.
3. Function: can be cooling or heating ( electric heating, circulation oil heating or steam heating ).
4. Discharge way: hydraulic tilt , screw extruding , bottom valve.

We support customization.

Model	Main Motor Power	Blade Rotate Speed (optional inverter regulation speed)	Heating Power (optional)	Discharge Method (optional)	Vacuum Pump Power (optional vacuum)
5L	0.75KW	33/23 rpm	1KW	manual tilt	2.2KW
10L	1.1KW	33/23 rpm	2KW	manual tilt	2.2KW
100L	4KW	35/22 rpm	12KW	hydraulic tilt screw extruding bottom valve	2.2KW
200L	7.5KW	35/22 rpm	18KW	hydraulic tilt screw extruding bottom valve	2.2KW
300L	15KW	37/21 rpm	24KW	hydraulic tilt screw extruding bottom valve	2.2KW
500L	22KW	35/25 rpm	36KW	hydraulic tilt screw extruding bottom valve	2.2KW
1000L	37KW	30/16 rpm	36KW	hydraulic tilt screw extruding bottom valve	4KW
1500L	45KW	30/16 rpm	45KW	hydraulic tilt screw extruding bottom valve	5.5KW
2000L	55KW	30/16 rpm	45KW	hydraulic tilt screw extruding bottom valve	5.5KW
Material: SS304, SS316L, Carbon Steel Type: single layer or with jacket to heating or cooling Open the cover: by manual or hydraulic opening Discharge: hydraulic tilt, screw extruding, bottom valve Vacuum can be selected
The above data is just for your reference, we support customization.

Silicone sealant production line, we have all these machines. If you are interested in any items, please feel free to contact us, thanks.
