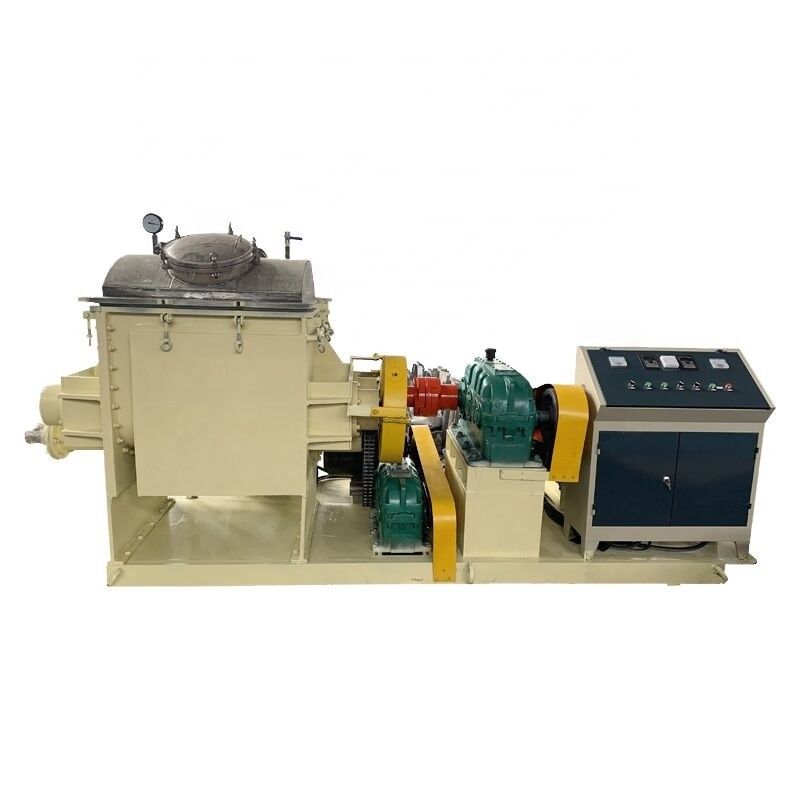

Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
  • Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
  • Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
  • Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
  • Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
  • Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
  • Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing

Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing

Place of Origin Shandong, China
Brand Name SANWEI
Certification CE ISO
Product Details
Mixer Type:
Sigma / Z Blade
Barrel Volume (L):
500 L
Material Processed:
Chemicals
Max. Loading Volume (L):
300 L
Range Of Spindle Speed(r.p.m):
21 - 37 R.p.m
Max. Loading Capacity:
300kg
Weight (KG):
4000 KG
Material:
SUS304, SUS304L, SUS316, SUS316L, SS304, SS316
Condition:
New
Product Type:
Glue, Rubber, Pencil Leads
Application:
Viscous Fluid
Additional Capabilities:
Heating
Voltage:
Customer Required
Dimension(L*W*H):
Depend On The Model
Power (kW):
37 KW
Warranty:
1 Year
Key Selling Points:
Long Service Life
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, OTHER, Advertising Co
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, Reducer
Product Name:
Sigma Kneader
Model:
5~2000L
Machine Type:
Double Z Blade Mixing Machine
Heating Method:
Electric Heating
Application Scope:
High Viscosity Product
Discharge:
Screw Extruding
Stirrer Type:
Double Z Blade
Keyword:
Sigma Mixer
Type:
Ordinary Type, Vacuum Type
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Port:
QINGDAO
High Light:

butyl rubber sealant chemical

,

double z blade sealant chemical

Payment & Shipping Terms
Price
$1,250.00 - $9,800.00/sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 0

Butyl Rubber Sigma Mixer Sealant Chemical Sigma Kneader Acrylic Latex Sealant Double Z Blade Mixing Machine

Kneader mixer is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.
Main Features:
1. Material: SS304 , SS316 or carbon steel can be choose
2. Type: normal type , vacuum type.
3. Function: can be cooling or heating ( electric heating, circulation oil heating or steam heating ).
4. Discharge way: hydraulic tilt , screw extruding , bottom valve.
We support customization.
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 1
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 2
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 3
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 4
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 5
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 6
Model
Main Motor Power
Blade Rotate Speed (optional inverter regulation speed)
Heating Power （optional）
Discharge Method （optional）
Vacuum Pump Power (optional vacuum)
5L
0.75KW
33/23 rpm
1KW
manual tilt
2.2KW
10L
1.1KW
33/23 rpm
2KW
manual tilt
2.2KW
100L
4KW
35/22 rpm
12KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
200L
7.5KW
35/22 rpm
18KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
300L
15KW
37/21 rpm
24KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
500L
22KW
35/25 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
1000L
37KW
30/16 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
4KW
1500L
45KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
2000L
55KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
Material: SS304, SS316L, Carbon Steel
Type: single layer or with jacket to heating or cooling
Open the cover: by manual or hydraulic opening
Discharge: hydraulic tilt, screw extruding, bottom valve
Vacuum can be selected
The above data is just for your reference, we support customization.
Double Z Blade Stirrer Sigma Kneader for Acrylic Latex Sealant Chemical Manufacturing 7
Silicone sealant production line, we have all these machines. If you are interested in any items, please feel free to contact us, thanks.
