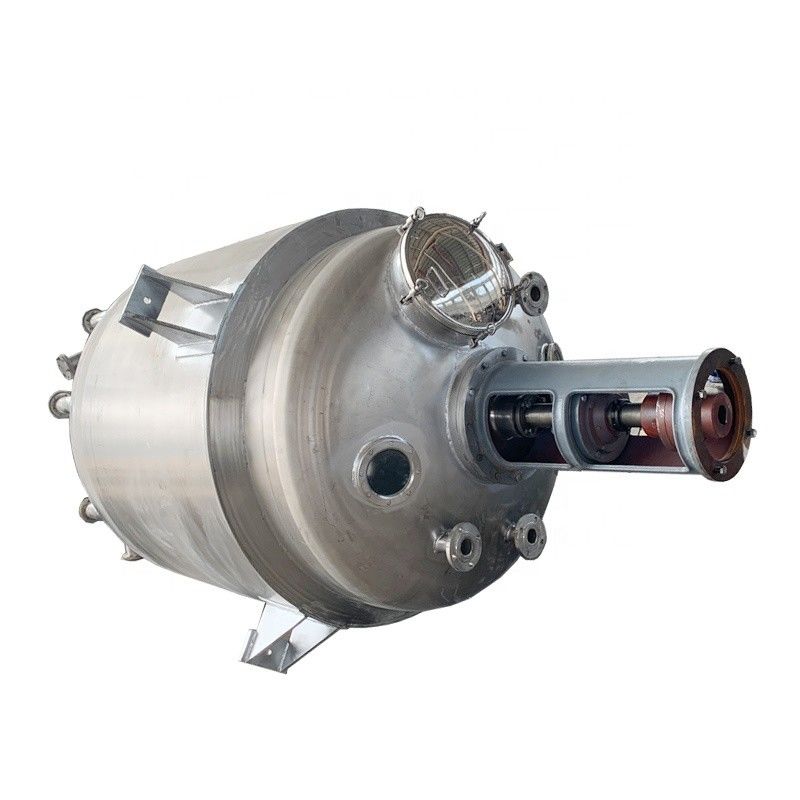

Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life
  • Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life
  • Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life
  • Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life
  • Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life
  • Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life
  • Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life

Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life

Place of Origin Shandong, China
Brand Name SANWEI
Certification CE ISO
Product Details
Capacity:
50L~30000L, 50L~30000L
Automatic Grade:
Automatic
Type:
Reaction Kettle
Condition:
New
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Motor
Voltage:
Customer Required
Power:
0.75kw - 75kw
Dimension(L*W*H):
Depend On The Model
Weight:
Depend On The Model
Warranty:
1 Year
Key Selling Points:
Long Service Life
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:
None
Product Name:
Reactor
Material:
SS304, SS316, Carbon Steel
Working Pressure:
Ordinary Pressure
Application:
Polyester Polyol, Adhesive, Chemical Industry
Heating Method:
Electricity Heating, Steam Heating, Circulation Oil Heating
Mixing Type:
Anchor, Frame, Paddle Etc.
Keywords:
Chemical Reactor Vessel
Usage:
The Reaction Kettle
Sealing Type:
Mechanial Seal
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Port:
QINGDAO
High Light:

polyester kettle chemical

,

polyol adhesive kettle chemical

,

stainless steel kettle chemical

Payment & Shipping Terms
Price
$2,650.00/sets 1-4 sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 0

Stainless steel the reaction kettle chemical reactor vessel reactor for polyester polyol adhesive

1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, double layer (jacketed type), external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 1
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 2
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 3
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 4
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 5
Model
50L
100L
300L
500L
1000L
2000L
3000L
5000L
Mixing Motor Power
0.75KW
1.1KW
2.2KW
2.2KW
4KW
5.5KW
7.5KW
15KW
Heating Motor Power
8KW
12KW
24KW
36KW
48KW
60KW
75KW
90KW
Inner Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Jacket Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Material
SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
Heating Type
electric heating, steam heating, oil circulation heating etc.
Agitator
anchor, paddle, frame etc.
Sealing Method
packing seal or mechanical seal (vacuum)
Model
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
Remarks
We support OEM
More Type
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 6
Electric Heating Reactor
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 7
Steam Heating Reactor
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 8
Limpet Coil Reactor
Polyester Polyol Adhesive Stainless Steel Chemical Reactor with Long Service Life 9
Multifunctional Reactor
