Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
  • Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
  • Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
  • Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
  • Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
  • Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
  • Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive

Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive

Place of Origin Shandong, China
Brand Name SANWEI
Product Details
Mixer Type:
Z Blade Agitator
Barrel Volume (L):
1500
Material Processed:
Chemicals
Max. Loading Volume (L):
900 L
Range Of Spindle Speed(r.p.m):
21 - 37 R.p.m
Max. Loading Capacity:
900
Weight (KG):
4000 KG
Material:
SUS304, SUS304L, SUS316, SUS316L, SS304 ; SS316
Condition:
New
Product Type:
Adhesive
Application:
Viscous Fluid, Kneader For Hot Melt Adhesive, Rubber
Voltage:
Customer Required
Dimension(L*W*H):
3*2*2..6m
Power (kW):
55 KW
Warranty:
1 Year
Key Selling Points:
Long Service Life
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company,
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, Reducer
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Type:
Hydraulic Cylinder Dumping Kneader
Volume:
5~2000L
Stirring Method:
"Z" Agitator Blade
Working Press:
Ordinary Pressure Or -0.098Mpa
Batch Feeder:
Hydraulic
Discharge Method:
Hydraulic Cylinder Dumping
Machine Type:
Rubber Kneader Machine
Port:
QINGDAO
High Light:

hot melt kneading machine

,

adhesive kneading machine

,

plastic kneading machine

Payment & Shipping Terms
Price
$4,850.00/sets 1-4 sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 0
Product Description

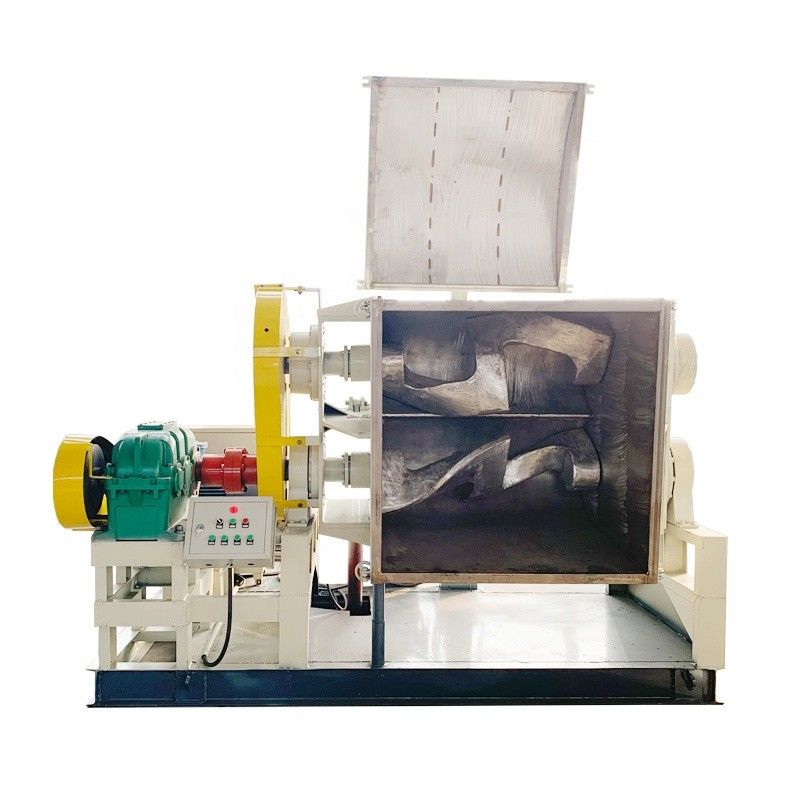

Hydraulic cylinder dumping kneader for rubber plastic hot melt adhesive kneader kneading machine

Kneader machine is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.
Main Features:
1. Material: SS304 , SS316 or carbon steel can be choose
2. Type: normal type , vacuum type.
3. Function: can be cooling or heating ( electric heating, circulation oil heating or steam heating ).
4. Discharge way: hydraulic tilt , screw extruding , bottom valve.
We support customization.
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 1
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 2
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 3
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 4
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 5
Model
Main Motor Power
Blade Rotate Speed (optional inverter regulation speed)
Heating Power （optional）
Discharge Method （optional）
Vacuum Pump Power (optional vacuum)
5L
0.75KW
33/23 rpm
1KW
manual tilt
2.2KW
10L
1.1KW
33/23 rpm
2KW
manual tilt
2.2KW
100L
4KW
35/22 rpm
12KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
200L
7.5KW
35/22 rpm
18KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
300L
15KW
37/21 rpm
24KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
500L
22KW
35/25 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
1000L
37KW
30/16 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
4KW
1500L
45KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
2000L
55KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
Material: SS304, SS316L, Carbon Steel
Type: single layer or with jacket
Open the cover: by manual or hydraulic opening
Discharge: hydraulic tilt, screw extruding, bottom valve
Vacuum can be selected
The above data is just for your reference, we support customization.
Hydraulic Cylinder Dumping Kneading Machine for Rubber Plastic Hot Melt Adhesive 6
Silicone sealant production line, we have all these machines. If you are interested in any items, please feel free to contact us, thanks.
