Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
  • Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
  • Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
  • Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
  • Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
  • Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
  • Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line

Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line

Place of Origin Shandong, China
Brand Name SANWEI
Product Details
Application:
Plastic Recycling Machine
Condition:
New
Automatic Grade:
Automatic
Plastic Type:
PP/PE
Production Capacity (kg/h):
500 - 1500
Machine Type:
PP PE Bottle Washing Line
Equipment List:
Floating Washing Tank, Frication Washer
Max.Production Capacity (kg/h):
1500
Voltage:
Customer Required
Dimension(L*W*H):
Depend On The Model
Warranty:
1 Year
Key Selling Points:
Energy Saving
Video Outgoing-inspection:
Provided
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co
Showroom Location:
None
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Name:
Plastic Recycling Machine
Raw Material:
Floating Materials
Capacity:
1500kg/h
Type:
Plastic Recycle Washing Line
Function:
Waste Plastic Recycling
Final Product:
Clean Plastic Flakes
Material Processed:
Crushing-washing-drying
After-sales Service Provided:
Video Technical Support, Online Support
After Warranty Service:
Video Technical Support, Online Support
Local Service Location:
None
Marketing Type:
Ordinary Product
Port:
QINGDAO
High Light:

plastic recycling machine

,

hdpe recycling machine

,

ldpe recycling machine

Payment & Shipping Terms
Price
$3,200.00 - $9,600.00/sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
Product Description

Competitive price PP PE HDPE LDPE floating washing tank plastic crushing washing recycling machine line

Material: plastic floating materials
Finished Product: clean plastic flakes
Flake size: 30-40mm or customized
Working Process:
1. Material Conveying → 2. Crushing → 3. Friction Washing and Loading→ 4. Flotation Washing → 5. 2nd Flotation Washing → 6. Lifting and drying machine
S / N
Item Name
Function / Remark
1
Conveyor
Feeding material
2
Crusher
Crushing the material into small size
3
Friction Washing loader Machine
Washing out the sand, soil and loading the material
4
Floating Washing Tank
Floating washing separate the sand,soil and other dirties
5
2nd Floating Washing Tank (self-selection)
Floating washing separate the sand,soil and other dirties
6
Vertical lifting and drying machine
Lifting and drying machine
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 0
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 1
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 2
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 3
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 4
Details Images

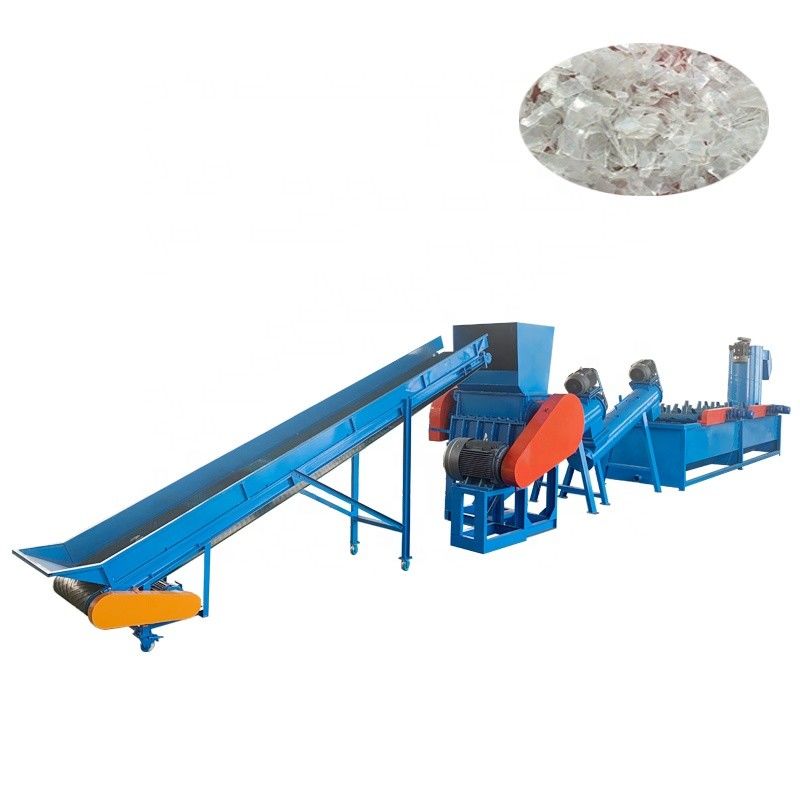

Plastic Floating Materials Crushing Washing Recycling Line
capacity: 1500kg/h, support OEM
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 5
Belt conveyor
Length: 6m
Width: 0.6m
Motor power: 1.5kw
Movable on wheels
It can be customized.
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 6
Plastic crusher with friction washing machine
Crusher model: 1000
Motor power: 75kw
Rotary blade: 10pcs
Stationary blade: 4pcs
Blade size: L: 500mm, W: 100mm,
TH: 20mm
Diameter of rotating: 600mm
Friction washing machine:
Length: 3m
Diameter: 420mm
Motor power: 18.5kw
Floating Materials PP PE HDPE LDPE Washing Tank Plastic Crushing Recycling Machine Line 7
Floating washing tank with vertical lifting and drying machine
Length: 8m
Width: 1.5m
Height: 1.2m
Push plastic flakes device: 4pcs, 2 sets of 2.2kw motor
Vertical lifting and drying machine:
Length: 2.5m
Diameter: 825mm
Motor: 22kw
