Mini Crushing Washing Drying Plastic Recycling Machine Automatic
  • Mini Crushing Washing Drying Plastic Recycling Machine Automatic
  • Mini Crushing Washing Drying Plastic Recycling Machine Automatic
  • Mini Crushing Washing Drying Plastic Recycling Machine Automatic
  • Mini Crushing Washing Drying Plastic Recycling Machine Automatic
  • Mini Crushing Washing Drying Plastic Recycling Machine Automatic
  • Mini Crushing Washing Drying Plastic Recycling Machine Automatic
Mini Crushing Washing Drying Plastic Recycling Machine Automatic

Mini Crushing Washing Drying Plastic Recycling Machine Automatic

Place of Origin Shandong, China
Brand Name SANWEI
Certification CE ISO
Product Details
Application:
Plastic Recycling Machine
Condition:
New
Automatic Grade:
Automatic
Plastic Type:
PP/PE
Production Capacity (kg/h):
500 - 2000
Machine Type:
PP PE Film Washing Line
Equipment List:
Dewatering Machine, Floating Washing Tank, Frication Washer
Max.Production Capacity (kg/h):
2000
Voltage:
Customer Required
Dimension(L*W*H):
Depend On The Model
Weight (T):
5.2
Warranty:
1 Year
Key Selling Points:
Automatic
Video Outgoing-inspection:
Provided
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location:
None
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Name:
Plastic Recycling Machine
Raw Material:
PP PE Film
Production Capacity:
300-2000kg/h
Type:
Plastic Recycle Washing Line
Function:
Waste Plastic Recycling
Final Product:
Clean Plastic Flakes
Material Processed:
Crushing-washing-drying
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Marketing Type:
Ordinary Product
Port:
QINGDAO
High Light:

mini plastic recycling machine

,

automatic plastic recycling machine

,

plastic washing drying machine

Payment & Shipping Terms
Price
$3,200.00 - $8,600.00/sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description



Plastic crushing recycle washing line mini cheap plastic recycling machine

Material: Plastic Bag, PP Woven Bag, Plastic Film, Agricultural film, Plastic garbage etc.
Finished Product: clean and dry plastic flakes
Flake size: 30-40mm or customized
Working Process:
1. Material Conveying → 2. Crushing → 3. Friction Washing and Loading→ 4. Flotation Washing → 5. 2nd Flotation Washing → 6. Drying→ 7. Product Collecting
S / N
Item Name
Function / Remark
1
Conveyor
Feeding material
2
Crusher
Crushing the material into small size
3
Friction Washing loader Machine
Washing out the sand, soil and loading the material
4
Floating Washing Tank
Floating washing separate the sand,soil and other dirties
5
2nd Floating Washing Tank (self-selection)
Floating washing separate the sand,soil and other dirties
6
Horizontal dewatering machine
Drying
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 0
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 1

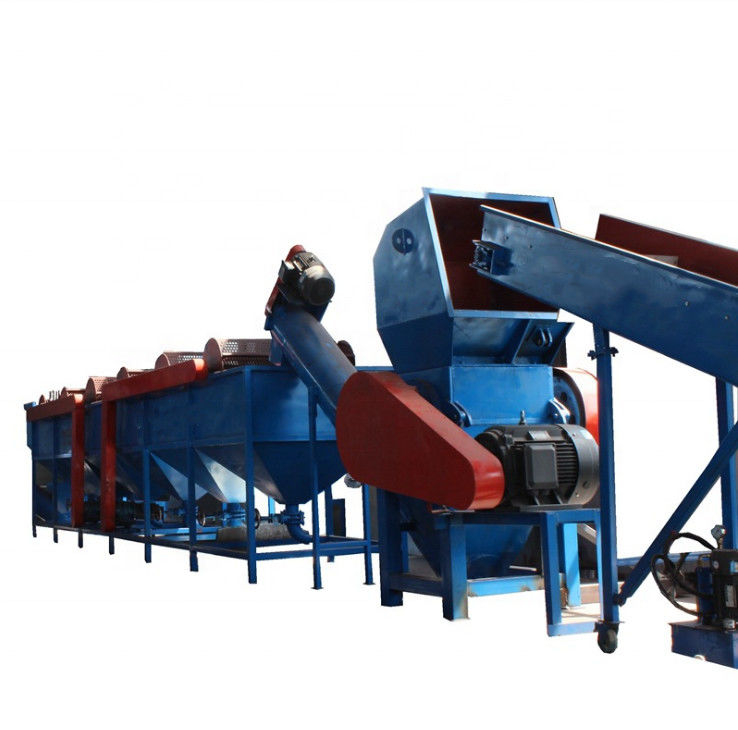

Plastic crushing and friction washing machine with conveyor
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 2
Floating washing tank
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 3
Details Images
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 4
Conveyor
Belt width: 0.5m
Delivery length: 5m
Motor power: 1.5kw
Can be customized.

Mini Crushing Washing Drying Plastic Recycling Machine Automatic 5
Plastic crushing and friction washing machine
Model: SW-600
Motor power: 30kw
Rotary blade: 6PCS
Stationary blade: 4PCS
Blade size: L: 300mm, W: 100mm,
TH: 20mm
Diameter of rotating: 540mm
Friction washing machine:
Length: 2.5m
Diameter: 377mm
Motor power: 15kw
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 6
Floating washing tank
Dimension: 6 m * 1.5 m * 1.7 m * 2 with automatic slagging function
Material: carbon steel
Plate thickness: 6mm
Spiral discharge: 220x5000mm
Spiral slag removal: 220x2500mm
Heavy material support, reserved drain
Heavy duty feeder: three per pool
Cycloidal needle motor: BWD1.5KW2, 2.2kw 2, 3kw2
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 7

Horizontal dewatering machine

Cylinder diameter: 700mm
Effective length: 2500mm
Motor power: 22kw
Speed: about 1200rpm
Screen: aperture 5mm
Dehydration rate: not less than 80%
Production capacity: 800-1000kg/h
Our Company
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 8
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 9
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 10
Related Products

Packing & Delivery
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 11
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 12
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 13
Mini Crushing Washing Drying Plastic Recycling Machine Automatic 14
