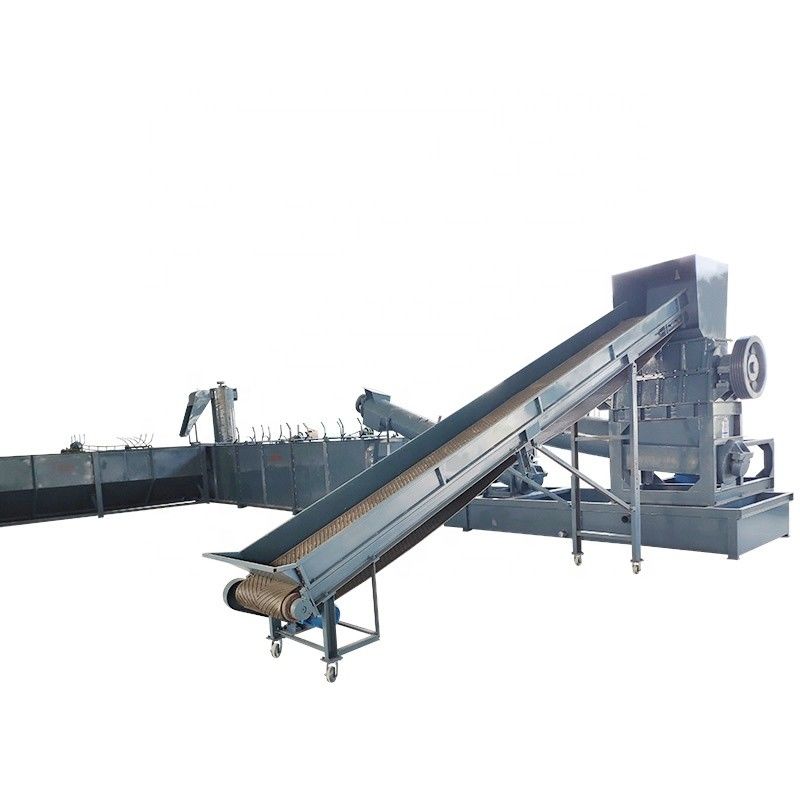

CE Frication Washer Equipped Plastic Film Recycle Washing Line
  • CE Frication Washer Equipped Plastic Film Recycle Washing Line
  • CE Frication Washer Equipped Plastic Film Recycle Washing Line
  • CE Frication Washer Equipped Plastic Film Recycle Washing Line
  • CE Frication Washer Equipped Plastic Film Recycle Washing Line
  • CE Frication Washer Equipped Plastic Film Recycle Washing Line
  • CE Frication Washer Equipped Plastic Film Recycle Washing Line
CE Frication Washer Equipped Plastic Film Recycle Washing Line

CE Frication Washer Equipped Plastic Film Recycle Washing Line

Place of Origin Shandong, China
Brand Name SANWEI
Certification CE ISO
Product Details
Application:
Plastic Recycling Line
Condition:
New
Automatic Grade:
Automatic
Plastic Type:
PP/PE, PP PE HDPE LDPE LLDPE
Production Capacity (kg/h):
500 - 2000
Machine Type:
PP PE Film Washing Line
Equipment List:
Floating Washing Tank, Frication Washer
Max.Production Capacity (kg/h):
2000
Voltage:
Customer Required
Dimension(L*W*H):
Depend On The Model
Power (kW):
Depend On The Model
Weight (T):
4.6
Warranty:
1 Year
Key Selling Points:
Long Service Life
Video Outgoing-inspection:
Provided
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
None
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Product Name:
Recycle Washing Line
Final Product:
Clean Plastic Flakes
Keywords:
Plastic Film Recycle Washing Line
Machine Type:
Plastic Recycling Machine
Used For:
Recycle Washing Line For Film
Material Processed:
Crushing Washing
Function:
Making Clean Plastic Flakes
Related Products:
PE PP Recycling Granulating Machine
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Marketing Type:
Ordinary Product
Port:
QINGDAO
High Light:

plastic film recycle washing line

,

ce recycle washing line

,

ce washer equipped plastic

Payment & Shipping Terms
Price
$3,600.00 - $8,600.00/sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
CE Frication Washer Equipped Plastic Film Recycle Washing Line 0

High Quality Cost Of Plastic Film Recycle Washing Line

Material: Plastic Bag, PP Woven Bag, Plastic Film, Agricultural film, Plastic garbage etc.
Finished Product: clean and dry plastic flakes
Flake size: 30-40mm or customized
Working Process:
1. Material Conveying → 2. Crushing → 3. Friction Washing and Loading→ 4. Flotation Washing → 5. 2nd Flotation Washing → 6. Drying→ 7. Product Collecting
S / N
Item Name
Function
1
Conveyor
Feeding material
2
Crusher
Crushing the material into small size
3
Friction Washing Machine
Washing out the sand, soil and loading the material
4
Floating Washing Tank
Floating washing separate the sand,soil and other dirties
5
2nd Floating Washing Tank (self-selection)
Floating washing separate the sand,soil and other dirties
CE Frication Washer Equipped Plastic Film Recycle Washing Line 1
CE Frication Washer Equipped Plastic Film Recycle Washing Line 2
CE Frication Washer Equipped Plastic Film Recycle Washing Line 3
CE Frication Washer Equipped Plastic Film Recycle Washing Line 4
CE Frication Washer Equipped Plastic Film Recycle Washing Line 5
Details Images
CE Frication Washer Equipped Plastic Film Recycle Washing Line 6
Conveyor
Belt width: 0.5m
Delivery length: 5m
Motor power: 1.5kw

CE Frication Washer Equipped Plastic Film Recycle Washing Line 7
Plastic crusher with friction washing machine
Model: SW-600
Motor power: 30kw
Rotary blade: 6PCS
Stationary blade: 4PCS
Blade size: L: 300mm, W: 100mm,
TH: 20mm
Diameter of rotating: 540mm
Friction washing machine:
Length: 2.5m
Diameter: 377mm
Motor power: 15kw
CE Frication Washer Equipped Plastic Film Recycle Washing Line 8
Floating washing tank
Washing tank dimension: 6 m * 1.5 m * 1.7 m (It can be customized)
Material: carbon steel
Spiral discharge: 220x5000mm
Spiral slag removal: 220x2500mm
Heavy material support, reserved drain
Heavy duty feeder: three per pool
Cycloidal needle motor: BWD1.5KW2, 2.2kw 2, 3kw2
CE Frication Washer Equipped Plastic Film Recycle Washing Line 9
Horizontal dewatering machine
Horizontal dewatering machine cylinder diameter: 700mm
Effective length: 2500mm
Motor power: 22kw
Speed: about 1200rpm
Screen: aperture 5mm, stainless steel
Dehydration rate: not less than 80%
Production capacity: 800-1000kg/h
