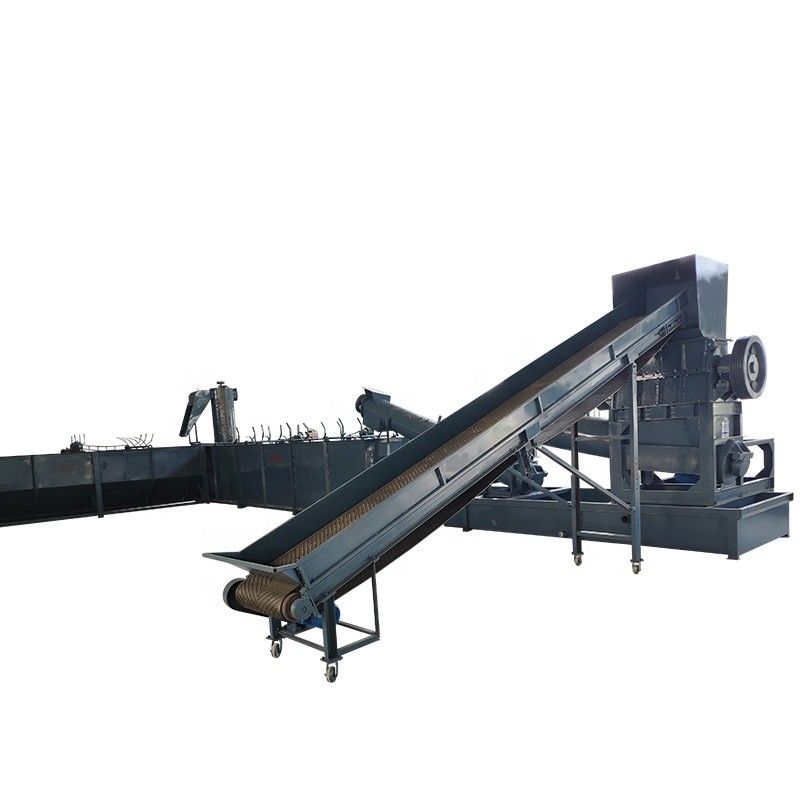

Conveyor
Belt width: 0.5mDelivery length: 6m
Motor power: 1.5kw
Speed: 25r/min
Can be customized.
Home
>
products
>
Plastic Pelletizer Machines
>
|
| Place of Origin | Shandong, China |
| Brand Name | SANWEI |
| Certification | CE ISO |
Material: Plastic Bag, PP Woven Bag, Plastic Film, Agricultural film, Plastic garbage etc.
Finished product: clean and dry plastic flakes
Flake size: 30-40mm or customized
Working Process:
1. Material Conveying → 2. Crushing → 3. Friction Washing and Loading→ 4. Flotation Washing → 5. 2nd Flotation Washing → 6. Drying → 7. Product Collecting
Description
Plastic recycling machine is widely used in recycling waste plastic to clean flakes, After cleaned, you can make them to be granules with next process which is called pelletizing line.
Plastic recycling machine is high automatic operating and save labor cost .
We can customize the line according to your requirpment.
We also have plastic film granulators, if you need it please contact with me.
|
S / N
|
Item Name
|
Function
|
|
1
|
Conveyor
|
Feeding material
|
|
2
|
Crusher
|
Crushing the material into small size
|
|
3
|
Friction Washing Machine
|
Washing out the sand, soil and loading the material
|
|
4
|
Floating Washing Tank
|
Floating washing separate the sand,soil and other dirties
|
|
5
|
2nd Floating Washing Tank (self-selection)
|
Floating washing separate the sand,soil and other dirties
|
|
Model
|
Material
|
Capacity
|
|
SW-500
|
PP PE
|
500kg/h
|
|
SW-1000
|
PP PE
|
1000kg/h
|
|
SW-2000
|
PP PE
|
2000kg/h
|
|
SW-2500
|
PP PE
|
2500kg/h
|
|
Plastic recycling machine
|
|
|
|
|
||||
|
capacity
|
about 1000kg/h
|
|
|
|
||||
|
material
|
PP PE
|
|
|
|
||||
|
conveyor
|
1pc, L: 6m, W: 0.5m, motor power: 1.5kw
|
|
|
|
||||
|
crusher
|
1pc, 600type, motor power: 30kw
|
|
|
|
||||
|
friction washing machine
|
1pc, L: 2.5m, D: 377mm, motor power: 15KW
|
|
|
|
||||
|
floating washing tank
|
1pc, L: 8m, W: 1.2m, H: 1m. kick-out device: 3pcs, motor power: 2.2kw. vertical material lift dryer:1pc, motor power: 15kw.
|
|
|
|
||||
|
power distribution cabinet
|
1pc
|
|
|
|
||||
|
Price
|
USD8,290.00 ( EXW price )
|
|
|
|
||||
