2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
  • 2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
  • 2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
  • 2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
  • 2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
  • 2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
  • 2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line

2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line

Place of Origin Shandong, China
Brand Name SANWEI
Certification CE ISO
Product Details
Application:
Plastic Recycling
Condition:
New
Automatic Grade:
Automatic
Plastic Type:
PP/PE
Production Capacity (kg/h):
300 - 2000
Machine Type:
PP PE Film Washing Line
Equipment List:
Dewatering Machine, Floating Washing Tank, Frication Washer
Max.Production Capacity (kg/h):
2000
Voltage:
Customer Required
Dimension(L*W*H):
Depend On The Model
Power (kW):
Depend On The Model
Warranty:
1 Year
Key Selling Points:
Automatic
Video Outgoing-inspection:
Provided
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co
Showroom Location:
None
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Product Name:
Plastic Recycle Washing Line
Raw Material:
PP PE
Material Processed:
Crushing-washing-drying
Keywords:
PP PE Recycle Washing Line
Function:
Plastic Rcycling Mchine
Final Product:
Clean Plastic Flakes
Used For:
Plastic Film Crushing Washing Line
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Marketing Type:
Ordinary Product
Port:
QINGDAO
Highlight:

pp pe film washing line

,

cleaning pp pe film washing line

,

plastic pe film washing line

Payment & Shipping Terms
Price
$3,600.00 - $8,600.00/sets
Packaging Details
Suitable Delivery And Protect The Machine
Supply Ability
100 Set/Sets per Quarter
Product Description
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 0

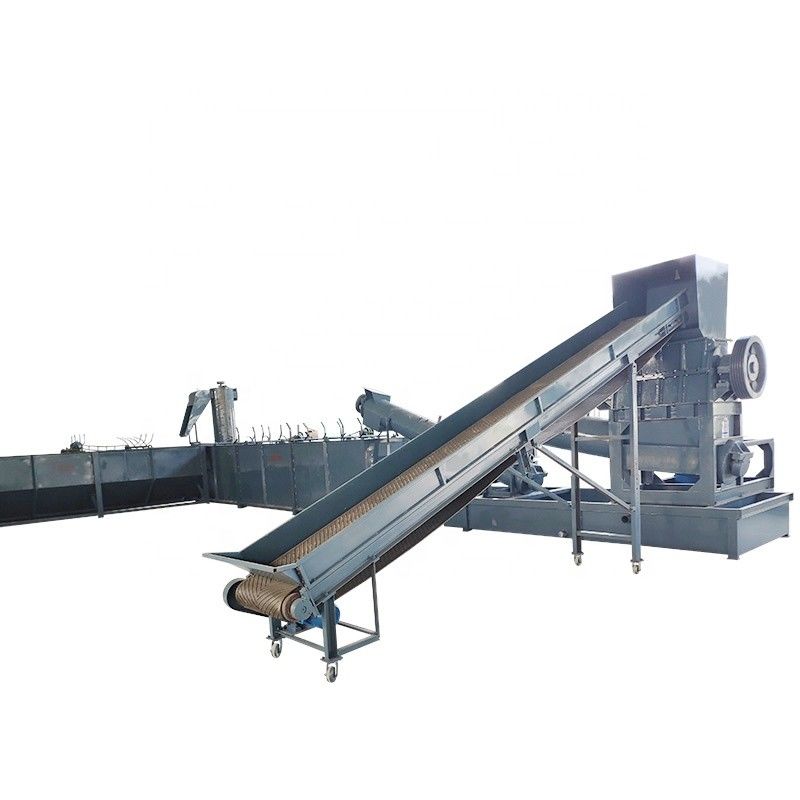

PP PE plastic film recycle crushing washing line

Material: Plastic Bag, PP Woven Bag, Plastic Film Finished product: clean and dry plastic flake Flake size: 30-40mm or customized We can customize the recycling line according to client's requirements.

Working Process of pp pe film recycling line

1. Material Conveying → 2. Crushing  → 3. Friction Washing →  4. Flotation Washing → 5. 2nd Flotation Washing → 6. Drying → 7. Product Collecting

S / N
Item Name
Function / Remark
1
Conveyor
Feeding material
2
Plastic Crusher
Crushing the material into small size
3
Friction Washing Machine
Washing out the sand, soil and loading the material
4
Floating Washing Tank
Floating washing separate the sand,soil and other dirties
5
2nd Floating Washing Tank (self-selection)
Floating washing separate the sand,soil and other dirties
6
Horizontal dewatering machine
Drying
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 1
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 2
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 3
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 4
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 5
Details Images
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 6
Conveyor
Belt width: 0.5m
Delivery length: 5m
Motor power: 1.5kw

2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 7
Plastic crusher with friction washing machine





Model: SW-600

Motor power: 30kw

Rotary blade: 6PCS
Stationary blade: 4PCS
Blade size: L: 300mm, W: 100mm,
TH: 20mm
Diameter of rotating: 540mm

Friction washing machine:
Length: 2.5m
Diameter: 377mm
Motor power: 15kw
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 8
Floating washing tank
Washing tank length: 6 m * 1.5 m * 1.7 m * 2 with automatic slagging function
Washing tank material: Q235B
Iron plate thickness: 6mm
Spiral discharge: 220x5000mm
Spiral slag removal: 220x2500mm
Heavy material support, reserved drain
Heavy duty feeder: three per pool
Cycloidal needle motor: BWD1.5KW2, 2.2kw 2, 3kw2
2000kg/H Max. Production Capacity PP PE Plastic Film Recycling And Cleaning Line 9

Horizontal dewatering machine

Horizontal dewatering machine cylinder diameter: 700mm
Effective length: 2500mm
Motor power: 22kw
Speed: about 1200rpm
Screen: aperture 5mm, stainless steel
Dehydration rate: not less than 80%
Production capacity: 800-1000kg/h
